Costa Rica Moin Port Terminal Phase II 102nos of Reefer Rack Steelworks
Location: PORT of LIMON, COSTA RICA
Project Scale: 102nos of Reefer Racks, approx. 2700ton
Scope of Project:
Reefer Racks (Plataforma de Trabajo) – Includes material supply, fabrication and delivery under CFR.
Electrical brackets for distribution boards, control panels and cable trays
Additional Trial Assembly
|
Member/Item |
Standard |
Grade |
Galvanized |
|
Columns |
ASTM A992 |
Grade 50 |
A123 |
|
Primary Beams |
ASTM A992 |
Grade 50 |
A123 |
|
Secondary Beams/Stingers |
ASTM A36 / A572 |
Grade 50 |
A123 |
|
Handrail pipes |
A500 |
Grade B |
A123 |
|
Handrail sleeves |
A500 |
Grade B |
A123 |
|
Kick plates |
ASTM A36 / A572 |
Grade 50 |
A123 |
|
Bracings |
ASTM A36 / A572 |
Grade 50 |
A123 |
|
Grating |
As approved by Engineer |
As approved by Engineer |
A123 |
|
Stair treads |
As approved by Engineer |
As approved by Engineer |
A123 |
|
Plates |
ASTM A36 / A572 |
Grade 50 |
A123 |
|
Anchor bolts columns |
F1554 |
Grade 105 |
ASTM A143, A384, A385, A154, A123 |
|
Anchor bolts stairs |
F1554 |
Grade 105 |
ASTM A143, A384, A385, A154, A123 |
|
Nuts |
ASTM A563 |
As per spec |
ASTM A143, A384, A385, A154, A123 |
|
Not hardened Flat Washers |
ASTM F844 |
As per spec |
ASTM A143, A384, A385, A154, A123 |
|
Hardened Flat and Beveled Washers |
ASTM F436 |
As per spec |
ASTM A143, A384, A385, A154, A123 |

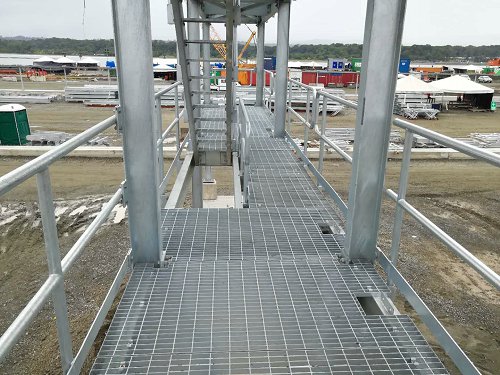

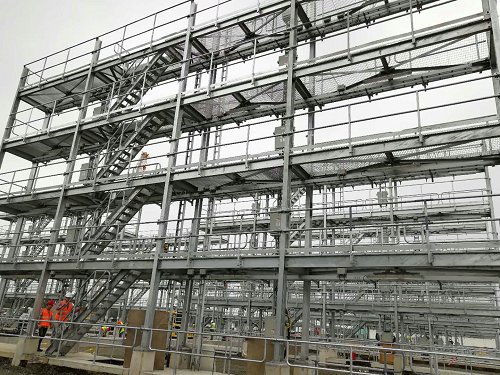

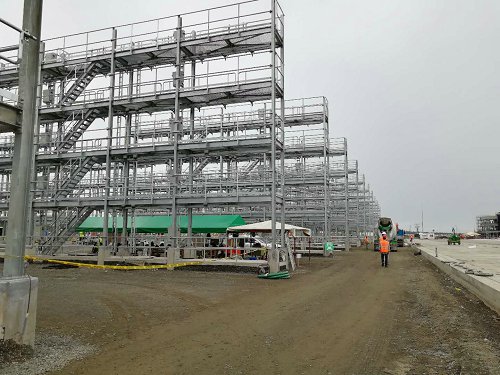

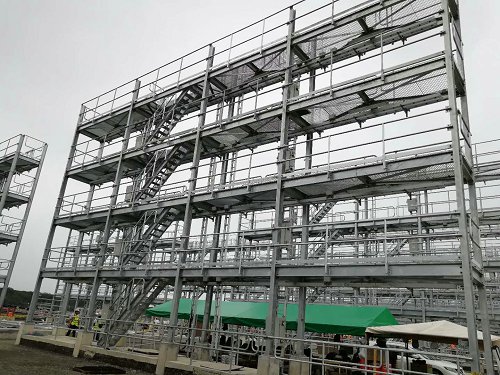

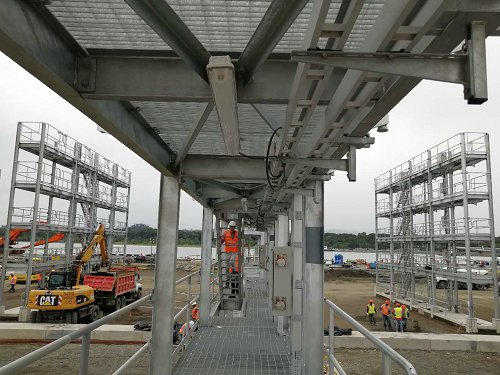

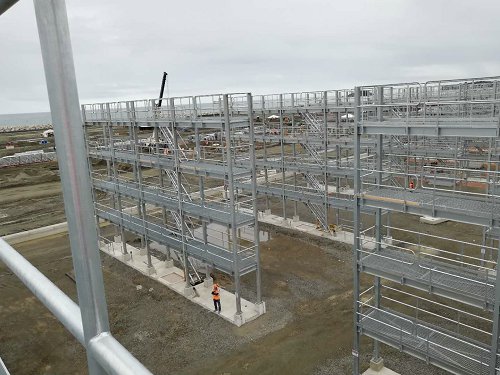

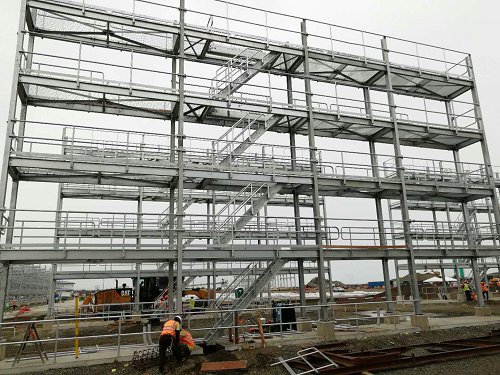

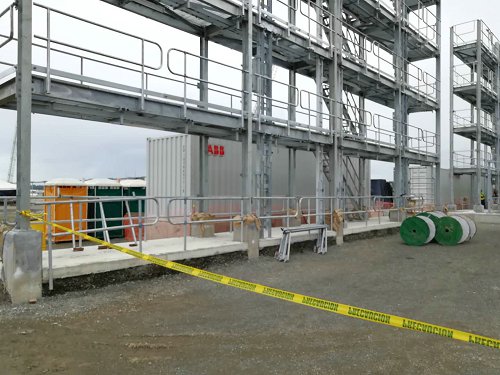

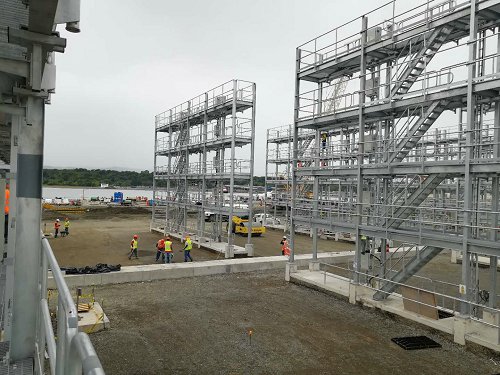

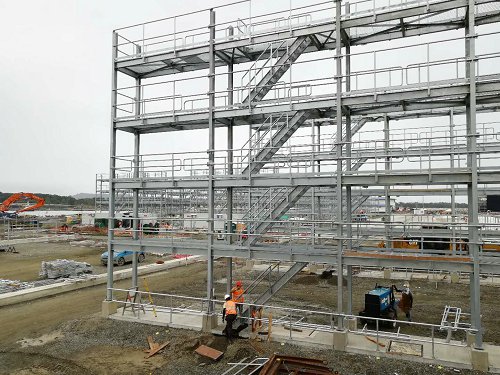

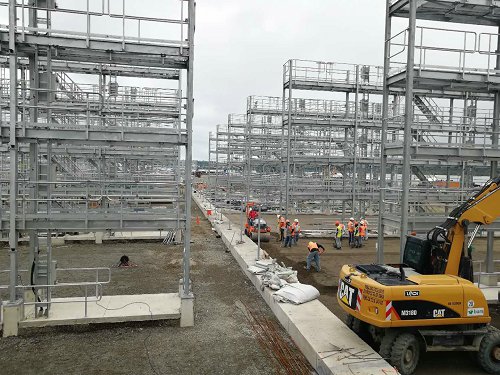

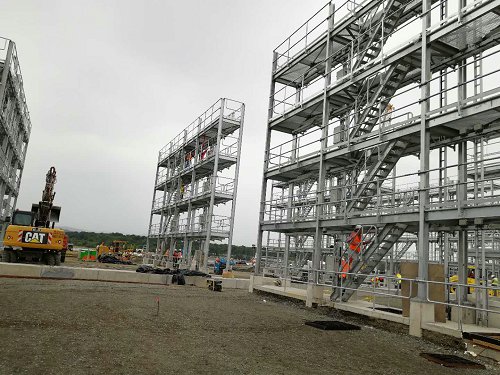

Site Construction Photos As shown below (Dec.2017):
Would you like to see more images of ZHM’s Reefer Racks and Safety Tunnels at Container Terminal ? Visit our Photo Gallery.
